| Dimession | Depth*Width*Height | 120*73*163 |
| Cooler Specification | socket compatibility | Intel LGA 1700/1200/1150/11511155/1156/1356/1356/1366, AMD: AM5/AM4/AM3/AM2/FM1/FM2 |
| Height | 152 | |
| Width | 48 | |
| Depth | 120 | |
| Material | Copper (base and heat-pipes(6mm*4)), aluminium (cooling fins), | |
| TDP | 200W | |
| Fan compatibility | 120x120x25 | |
| fans | Model | AC120150A |
| Bearing | FDB | |
| Max. rotational speed (+/- 10%) | 2500±10%RPM | |
| Min. rotational speed @ 20% PWM (+/-20%) | 1800±10%RPM | |
| Max. airflow | 87.76CFM | |
| max air pressure | 2.45mmH2O | |
| Max. acoustical noise | 20dB | |
| Voltage range | 12VDC | |
| MTTF | >1000hours | |

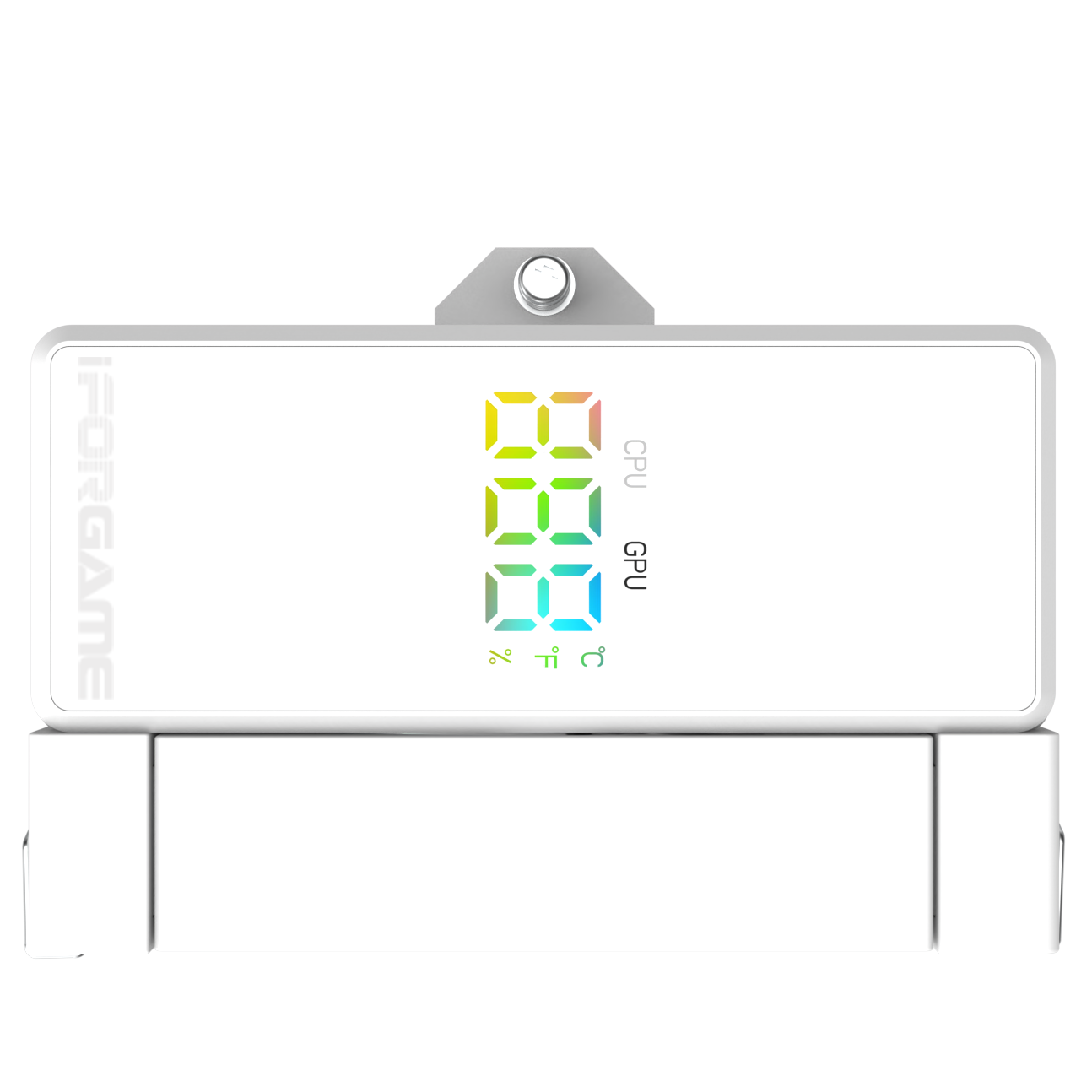

| Top cover | USAGE TEMP POWER | Display |
